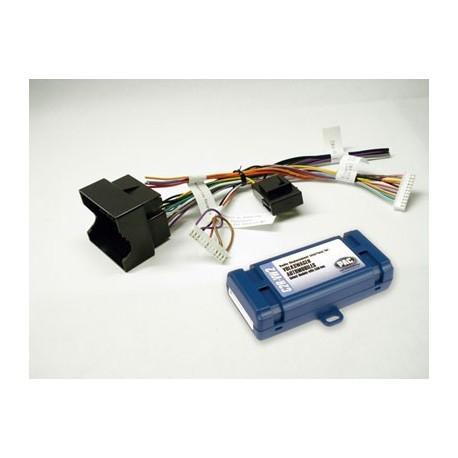

PAC Audio C2R-VW2 Radio Replacement Interface With Navigation Outputs for Select Volkswagen Vehicles
Provides navigation trigger wires and timed accessory output for replacing the factory radio and retains the factory-installed amplified audio system. Use a steering wheel interface module to retain the function of select factory controls (Please see the compatibility notes section for further details).
- Provides CAN-based navigation outputs
- Retains safety warning chimes
- Retains factory-installed amplifier
- Direct plug-in for SWI module to retain steering wheel controls
- 12V ACC and illumination outputs
Compatibility Notes:
- 2011 Jetta: Does not currently provide a reverse output trigger
- 2010+ Vehicles: The C2R-VW2 does not retain the digital amplifier in Dynaudio systems
- 2012+ Vehicles: The C2R-VW2 does not retain the digital amplifier in Fender systems
-
2002-2005 Vehicles: In these year vehicles the C2R-VW2 does not provide a Reverse output trigger. This signal is unavailable on the data bus. You must be replacing a factory Double-DIN radio. If the vehicle came equipped with a Single-DIN radio, the C2R-VW2 is not compatible. -
2004-2007 Touareg: Does not retain digital audio amplified system seen when the vehicles are equipped with factory navigation radio
Steering Wheel Control Notes
- We strongly recommend that vehicles equipped with SWC use the RP4-VW11
-
2002-2005 vehicles (excludes Touareg): Can only program the volume up & down.
-
2006-2010 vehicles with Eight button SWC (excludes Touareg)
- Can program volume up & down, phone button, and star button without affecting Multi-Function Display (MFD).
- Arrow up & down can be programmed but will control MFD.
-
2009-2010 vehicles with 12 button SWC (excludes Touareg)
- Can program left-hand side of steering wheel volume up & down, track left & right, phone and mute buttons without affecting MFD.
- Arrow up & down on the right side can be programmed but will control MFD.
-
2004-2010 Touareg: Can only program the volume up & down
| Year(s) | Make | Model | Trim Level | Additional Info |
|---|---|---|---|---|
| VOLKSWAGEN | BEETLE | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | CC | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | EOS | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | GOLF | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | GTI | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | JETTA | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | PASSAT | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | RABBIT | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | TIGUAN | ALL TRIM LEVELS | — | |
| VOLKSWAGEN | TOUAREG | ALL TRIM LEVELS | — |
