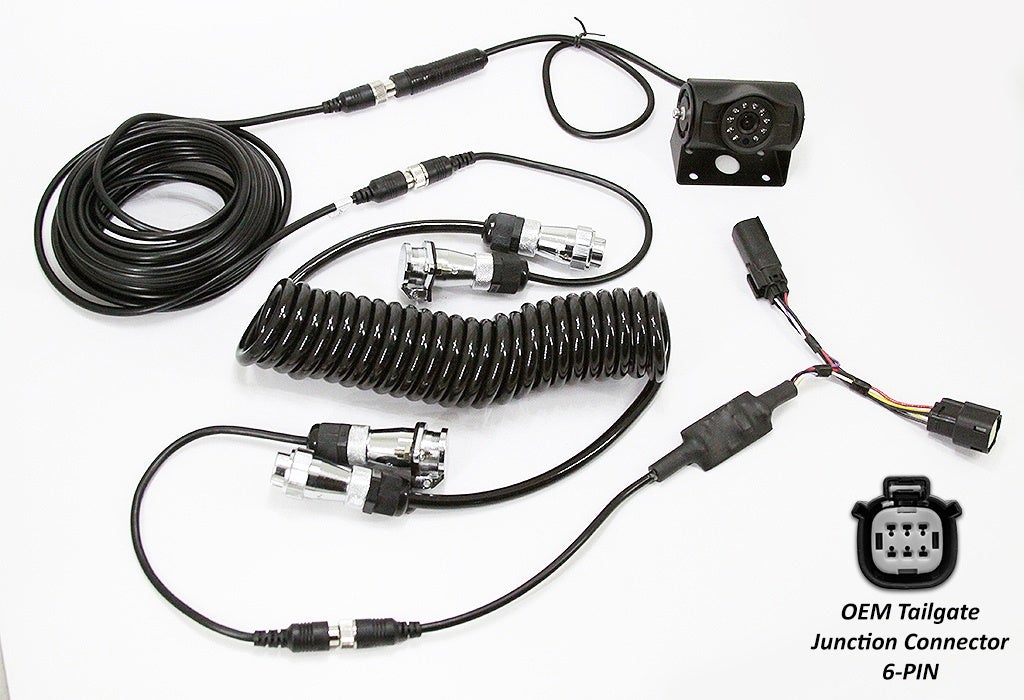

The Trailer-CAM View (TCV) kit provides the easiest way to add a reverse camera to any trailer and automatically display on the OEM screen when connected. This plug & play system T-Harnesses into your OEM Ford truck reverse camera harness (beneath the tailgate of the truck). After mounting the camera and extension to the trailer, installation is complete! No cutting of factory harness is required – no interface or complex installation behind the radio screen is required whatsoever – the entire system connects underneath the bed of the truck!
NOTE: the vehicle must be equipped with an OEM reverse camera to be compatible with this kit.
This kit includes a 10m (30') cable for the trailer camera. Additional 5m or 10m extension cables are available for purchase separately (see 'Related' below).
HD Backup Camera:
- Image Sensor: CCD
- Waterproof Rate: IP67
- Effective Pixels: 628/582
- Resolution: 600TV Lines
- Minimum Illumination: 0 Lux
- Current Consumption: 150mA
- Operation Temp: -10ºC - 50ºC
- Lens Angle: 120º
NOTE: video shows 2017 F150, but the function and installation is the same.
Vehicle Fitment Information
| Model | Year Range | Version | Radio | Notes |
|---|---|---|---|---|
| Ford/F-150 | 2013-2014 | USA, Rest of World, Europe | 8" My Ford Touch (SYNC 2), Ford 4" FULL COLOR Screen | |
| Ford/F-Series SuperDuty 250-350-450-550 | 2017-2019 | USA, Rest of World, Europe | 8" My Ford Touch (SYNC 3), Full Color, 5" LCD | Wide-Frame Only! |
