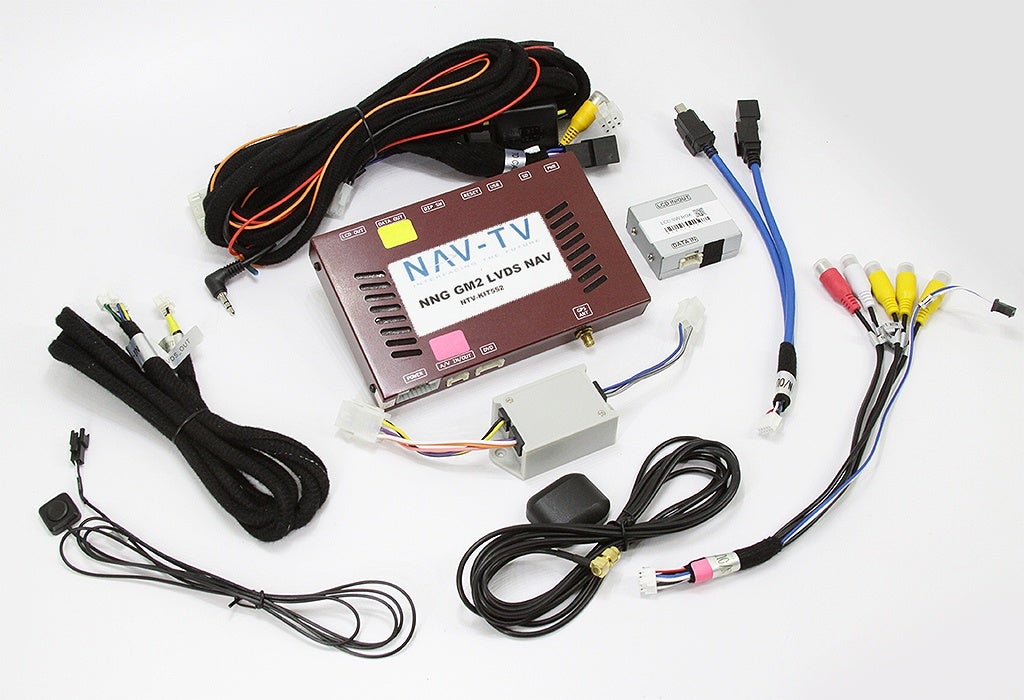

The NNG-GM2 kit interfaces the widely-used Nav N GO© powered navigation system into select GM vehicles equipped with the LVDS MyLINK media system. All factory GM touch screen functions are used for the navigation control and this interface allows for an optional backup camera to be added with no additional parts.
NOTE: This kit is for 2016 GM vehicles only. If the vehicle is 2015, use KIT552 instead.
Navigation add-on type: T-Harness: video/touch interception
Plug & Play: No (must hardwire speaker if no top-center channel, ACC wire must be connected)
Activation: OEM steering wheel button or provided push button switch
Video Inputs: 1 composite (rear cam): selectable ON/OEM
Note: Corvette & ALL Cadillac will require an additional harness for proper functionality:
- Corvette: NTV-KIT556 (t-harness)
- ALL Applicable Cadillac: NTV-KIT603 (t-harness)
Download manual Download manualVehicle Fitment Information
| Model | Year Range | Version | Radio | Notes |
|---|---|---|---|---|
| Buick/LaCrosse | 2016-2022 | USA, Rest of World, Europe | LVDS MyLink | No additional harness required |
| Buick/Regal | 2016-2022 | USA, Rest of World, Europe | LVDS MyLink | No additional harness required |
| Cadillac/ATS | 2016-2018 | USA, Rest of World, Europe | Cadillac CUE IO5/IO6 (8" Screen) | NTV-KIT603 T-Harness REQUIRED |
| Cadillac/CTS/CTS V | 2016-2017 | USA, Rest of World, Europe | Cadillac CUE IO5/IO6 (8" Screen) | NTV-KIT603 T-Harness REQUIRED |
| Cadillac/Escalade | 2016-2020 | USA, Rest of World, Europe | Cadillac CUE IO5/IO6 (8" Screen) | NTV-KIT603 T-Harness REQUIRED |
| Cadillac/SRX | 2016-2018 | USA, Rest of World, Europe | Cadillac CUE IO5/IO6 (8" Screen) | NTV-KIT603 T-Harness REQUIRED |
| Cadillac/XTS | 2016-2018 | USA, Rest of World, Europe | Cadillac CUE IO5/IO6 (8" Screen) | NTV-KIT603 T-Harness REQUIRED |
| Chevrolet/Impala | 2016-2018 | USA, Rest of World, Europe | LVDS MyLink | No additional harness required |
| Chevrolet/Silverado 1500 | 2016-2018 | USA, Rest of World, Europe | LVDS MyLink | No additional harness required |
| Chevrolet/Suburban | 2016-2020 | USA, Rest of World, Europe | LVDS MyLink | No additional harness required |
| Chevrolet/Tahoe | 2016-2020 | USA, Rest of World, Europe | LVDS MyLink | No additional harness required |
