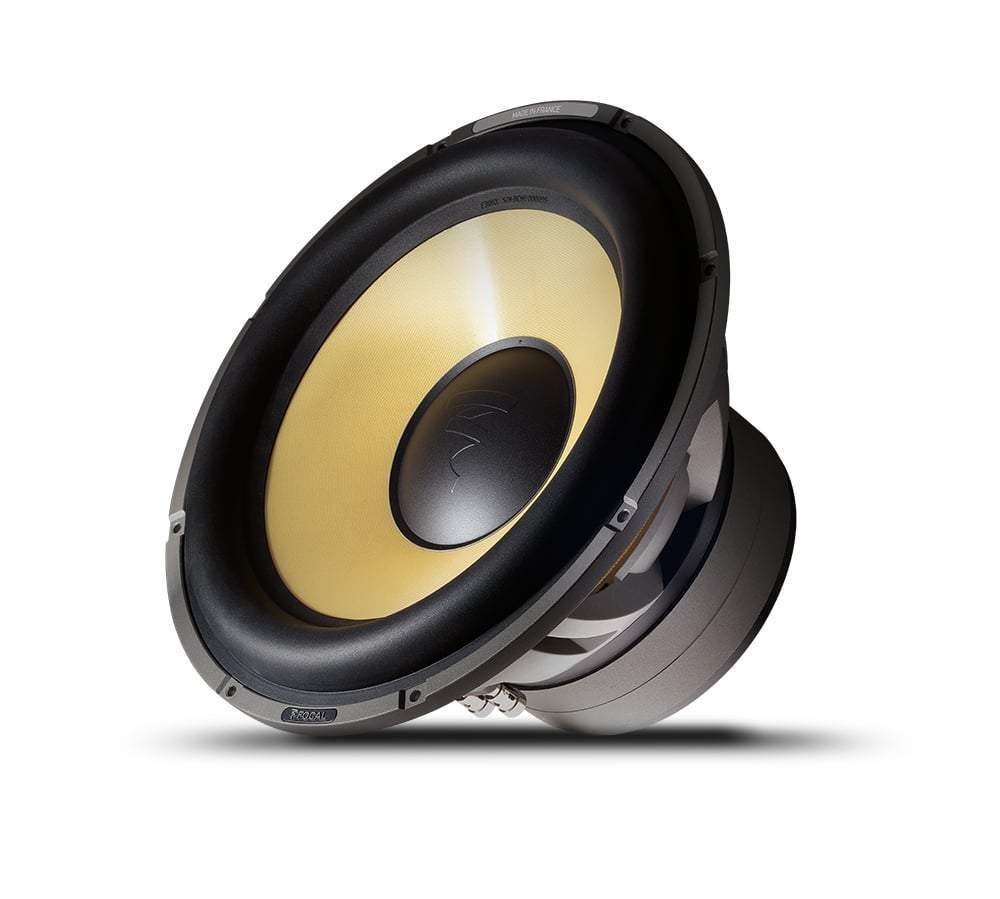

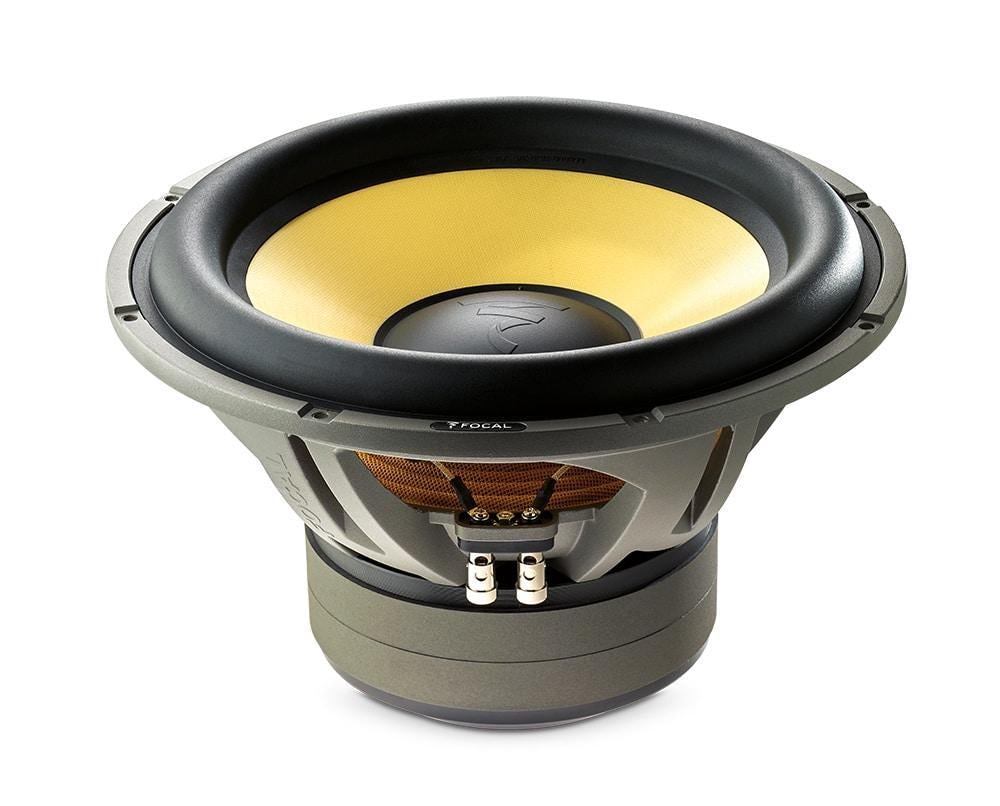

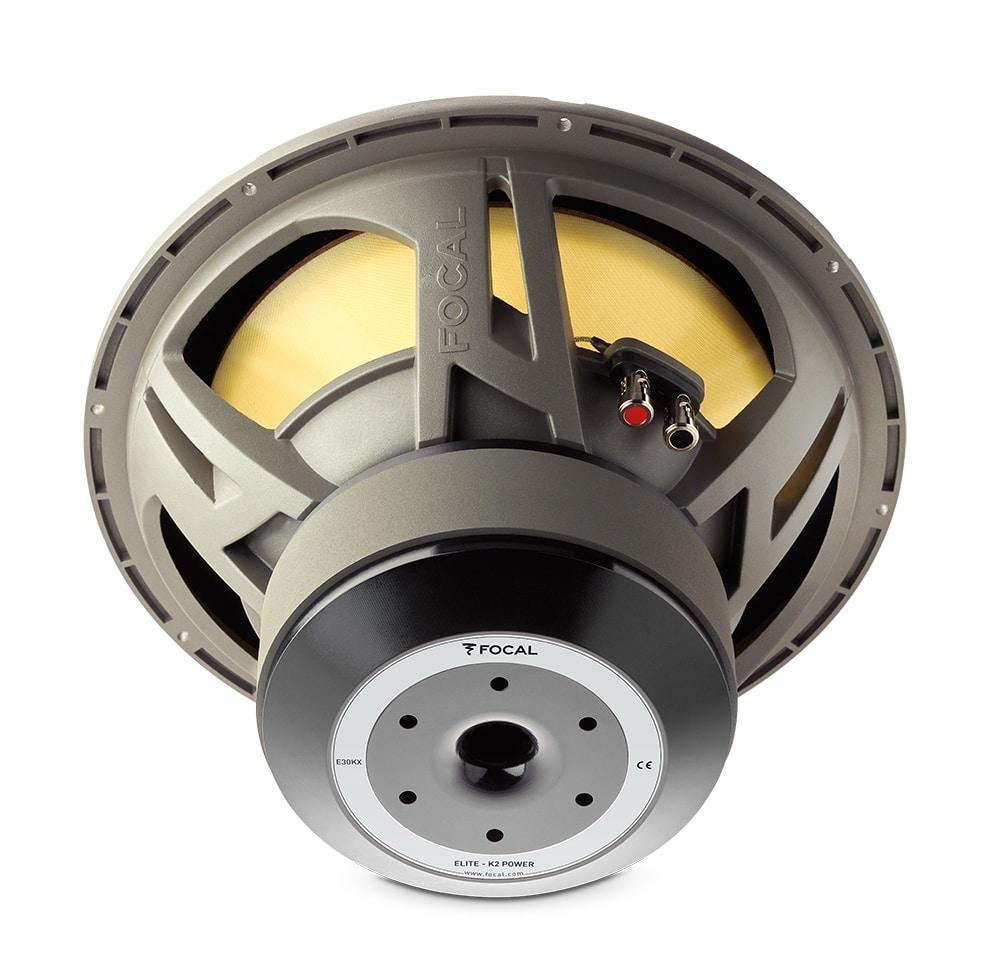

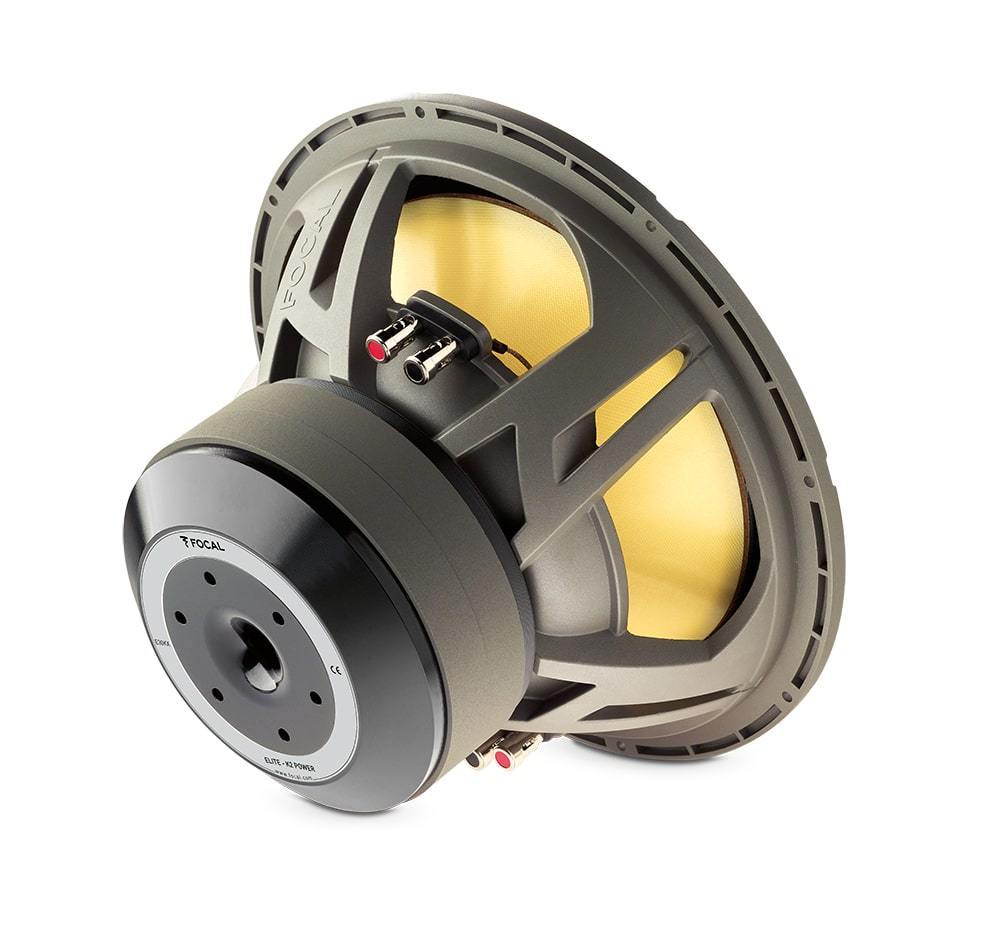

Focal E 30 KX High-Performance K2 Power Series 12-inch Subwoofer
30cm (12″) Subwoofer
Impressive power handling
High excursion
For sealed and vented enclosures [1 to 1.3 cu ft (28 to 35l)] in sealed for optimized performance
Specifications:
Woofer diameter: 12″ (300mm)
Voice coil diameter: 2-9/16″ (65mm)
Voice coil height: 2 3/16″(55mm)
Tweeter Composite: K2 Power “W” sandwich cone
Max power: 1600W
Nominal power: 800W RMS
Sensitivity: 86.5dB
Frequency response: 25Hz-500kHz
Impedance: dual 2×4 Ω
Composite Kevlar® Sandwich Cone
The Focal K2 Power Kevlar® cone, a product of unique expertise Made In France, is to this day second to none. Composed of an ultra-light foam structure sandwiched between a thin layer of Kevlar® aramid fibres, and a layer of glass fibres, the K2Power cone embodies the three key factors of high-performance sound quality characteristics:
- Rigidity
- Lightness
- Damping, for precise and dynamic sound.
High Output + Sound Quality
The new K2 Power TKM tweeter features an exclusive “M”-shaped structure. This new-generation aramid-fiber inverted dome tweeter provides great precision in the very high end, and its combination with a “push-pull” motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance.
The new Radial VC cooling system for speaker driver voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves control over the voice coil temperature, limiting the effects of thermal compression and improving reliability. This significantly increases the efficiency of the speaker driver. It also improves dynamics and produces a more powerful sound
Focal E30KX
