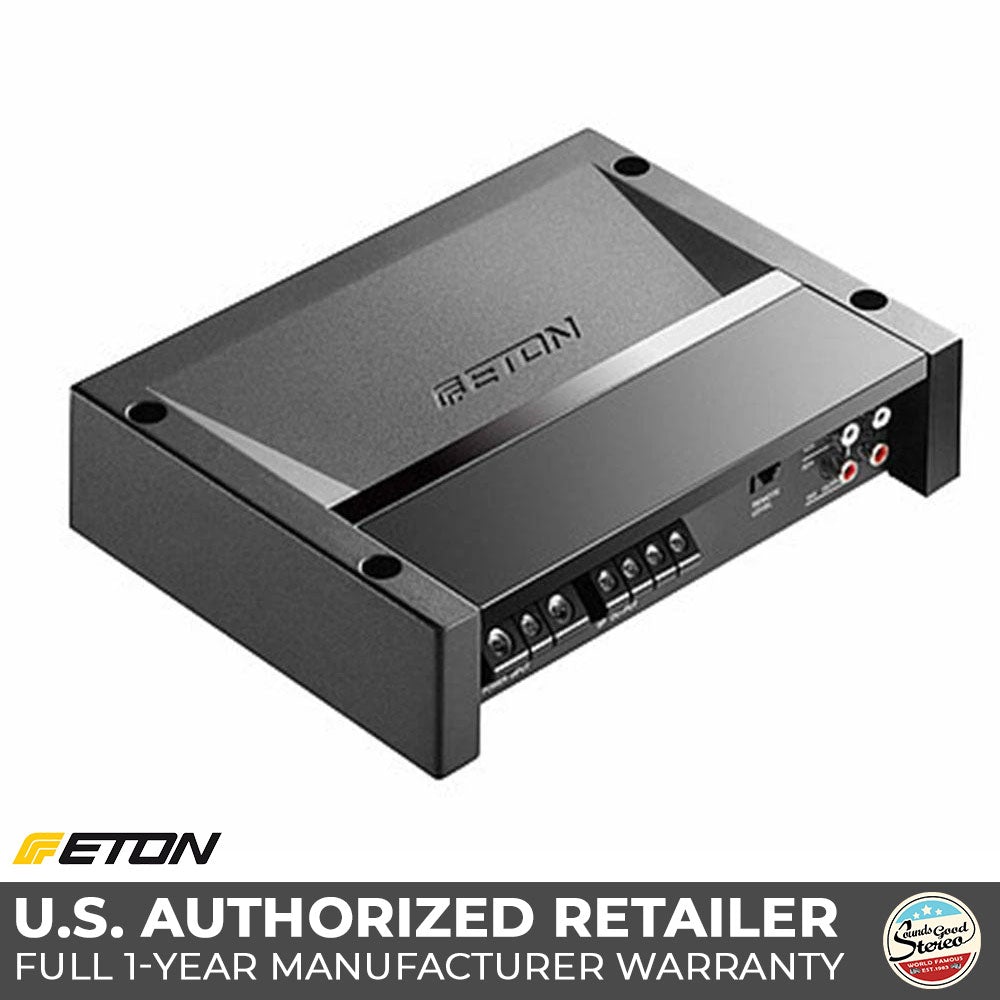

ETON SDA 750.1 Mono-Block Subwoofer Amplifier
Power Ratings:
1x 800 W @ 1 Ohm
1x 500 W @ 2 Ohm
1x 300 W @ 4 Ohm
Core Features:
Automatic turn-on
High level in for direct connection to the original radio
Subsonic filter 80 Hz
1 Ohm stable
Works with Start/Stop vehicles
Includes remote control
Dimensions in mm (WxHxD) 230 x 55 x 173
Tech Specs:
Battery Fuse Rating (Amp) External (Not Supplied) 70A
"A"Weighted Signal to Noise Ratio (CEA-2006) Referenced to 1Watt into 4 ohms => 80 dB
"A"Weighted Signal to Noise Ratio Referenced to rated power into 4 ohms => 90 dB
Crossover Slope 12dB/octave Butterworth
Crossover Frequency: Low Pass variable from 50Hz - 250Hz
Signal Voltage Adjustment Range: Variable from 300mV to 8V (RCA Input)
Protection Short circuit: Shorted speaker output and Thermal protection
Operating Voltage: 7,6 - 15,6 Volts DC
Damping Factor >200
THD+N (Total Harmonic Distortion + Noise) < 1.0% @ 4 ohm
1x 800 W @ 1 Ohm
1x 500 W @ 2 Ohm
1x 300 W @ 4 Ohm
Core Features:
Automatic turn-on
High level in for direct connection to the original radio
Subsonic filter 80 Hz
1 Ohm stable
Works with Start/Stop vehicles
Includes remote control
Dimensions in mm (WxHxD) 230 x 55 x 173
Tech Specs:
Battery Fuse Rating (Amp) External (Not Supplied) 70A
"A"Weighted Signal to Noise Ratio (CEA-2006) Referenced to 1Watt into 4 ohms => 80 dB
"A"Weighted Signal to Noise Ratio Referenced to rated power into 4 ohms => 90 dB
Crossover Slope 12dB/octave Butterworth
Crossover Frequency: Low Pass variable from 50Hz - 250Hz
Signal Voltage Adjustment Range: Variable from 300mV to 8V (RCA Input)
Protection Short circuit: Shorted speaker output and Thermal protection
Operating Voltage: 7,6 - 15,6 Volts DC
Damping Factor >200
THD+N (Total Harmonic Distortion + Noise) < 1.0% @ 4 ohm
