--The C Series Amplifiers offer the warm sound that Class AB amplifiers are known for, along with features such as band-passable crossover networks, high-end output devices, and set screw power and speaker terminals.

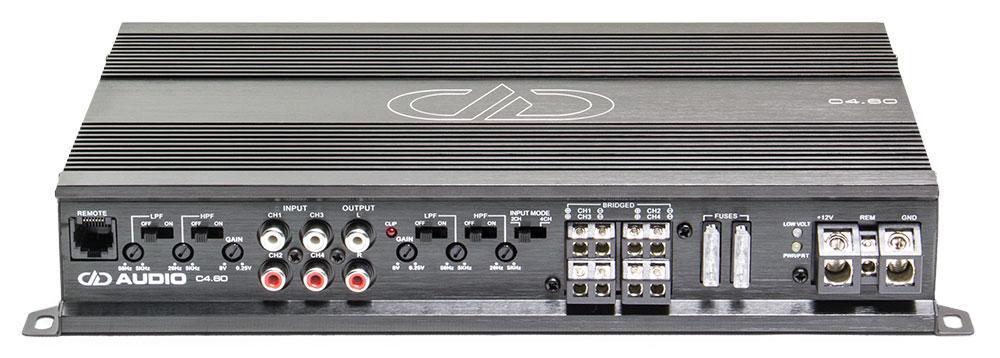

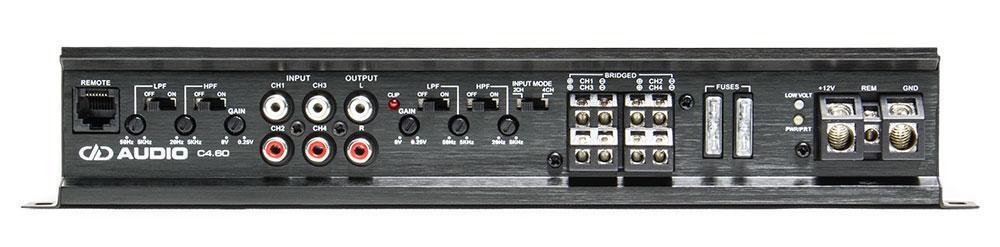

The chassis design features a single side control panel giving the C Series an elegant aesthetic and makes cable management and audio adjustments easy for quick clean installations.
C Series Design Features:
- Mosfet Power Supply Amplifier
- 4 Gauge Power Terminals
- Conformal Coated PCB
- Variable 12dB/Oct HPF and 18dB/Oct LPF Crossovers
- Pass-Through Output
- Remote Subwoofer Control (w/ DMRMT Sold Separately)
- Input Mode Switch (C4.60, C4.100)
- 4-Way Protection: Over Voltage, Short Circuit, Thermal, DC Offset
SPECS
| Test Voltage | 14.4V |
| Channels | 4 |
| Cont Wattage @ 4ohm | 60x4 / 180x2 |
| Cont Wattage @ 2ohm | 90x4 |
| Max Current Draw - Amperage | 40A |
| S/N Ratio | >86dB |
| THD | <0.20% |
| Input Voltage Sensitivity | 8V-0.25V |
| Pass-Through Output | Yes |
| Remote Subwoofer Control | Yes |
| Power Wire Guage In | 4 |
| Speaker Wire Gauge Out | 12 |
| Dimensions: in | 12.5x7x2 |
| Dimensions: mm | 318x175x54 |
