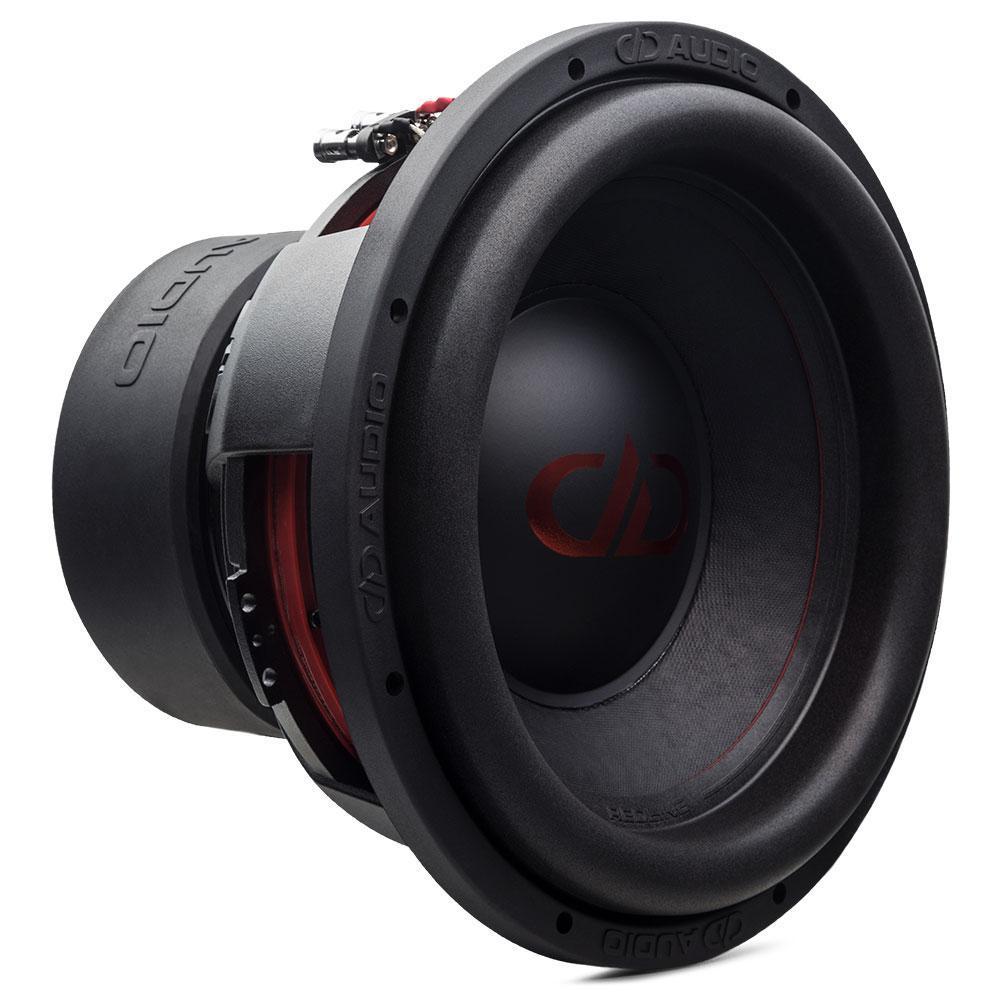

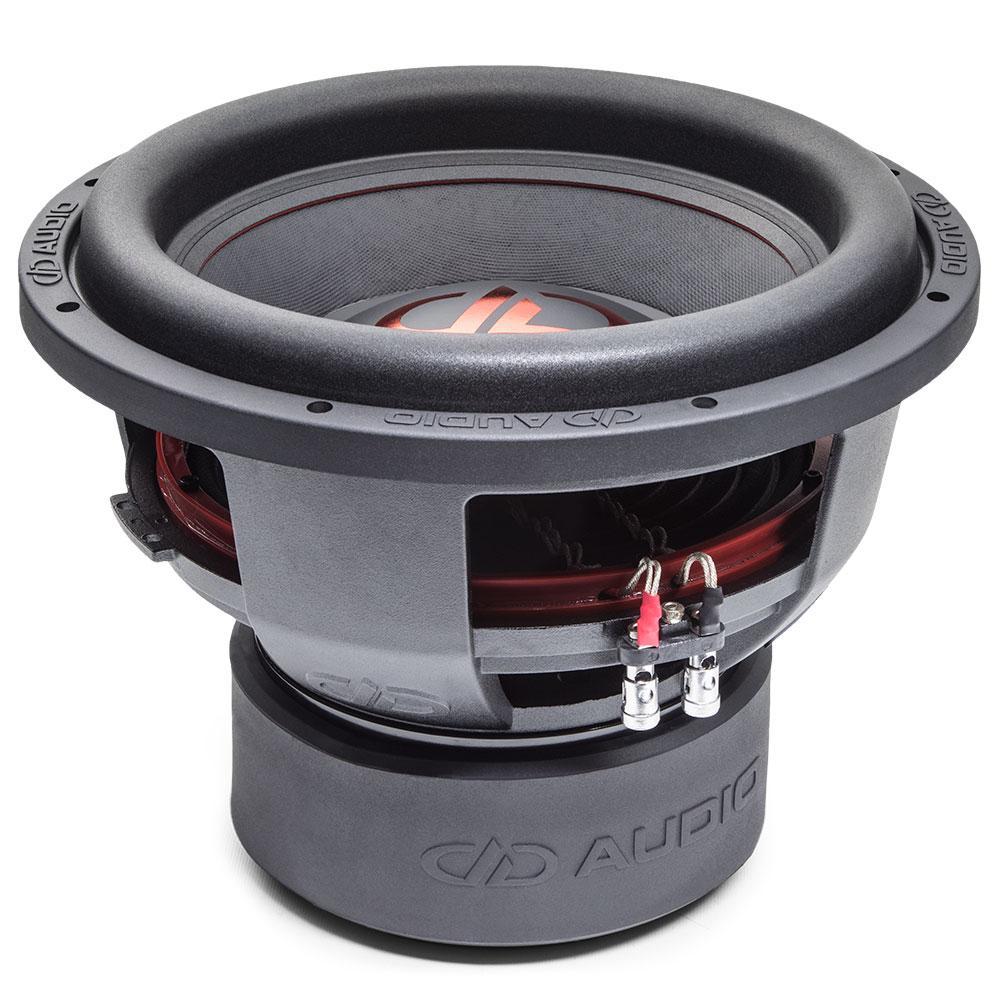

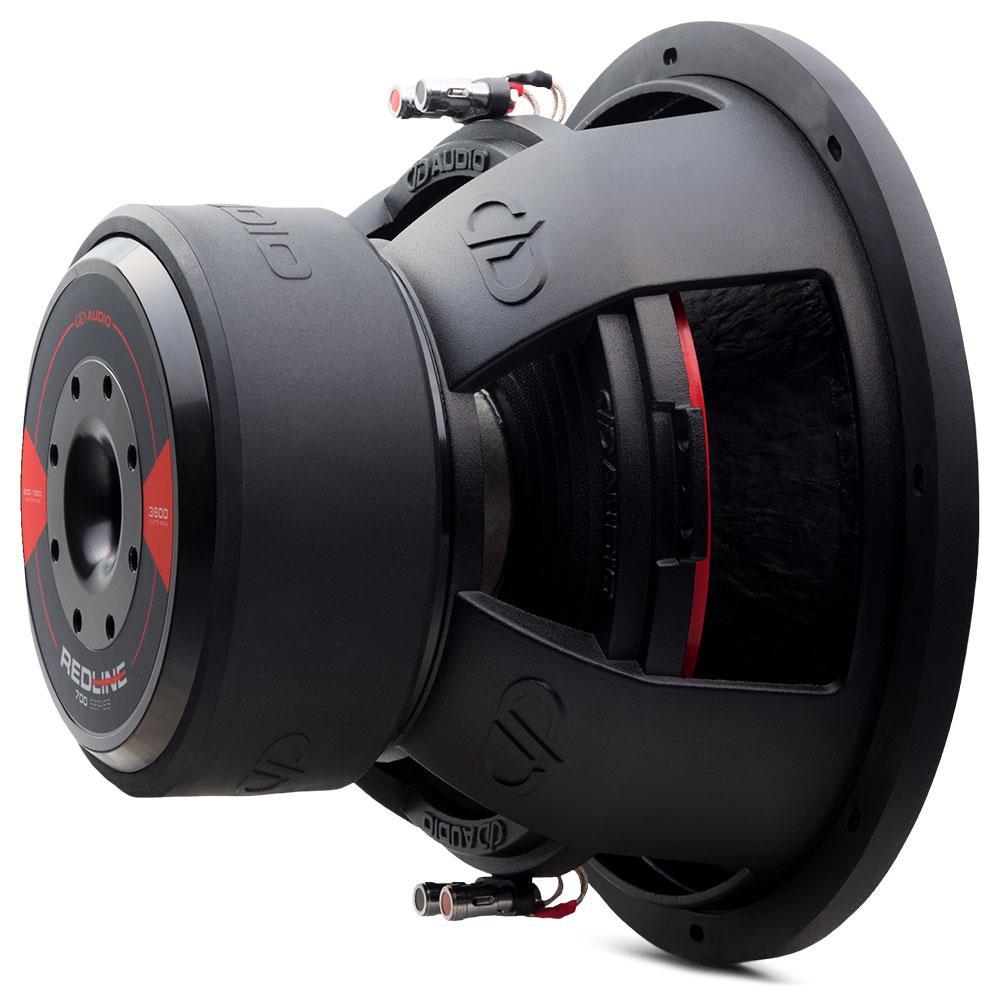

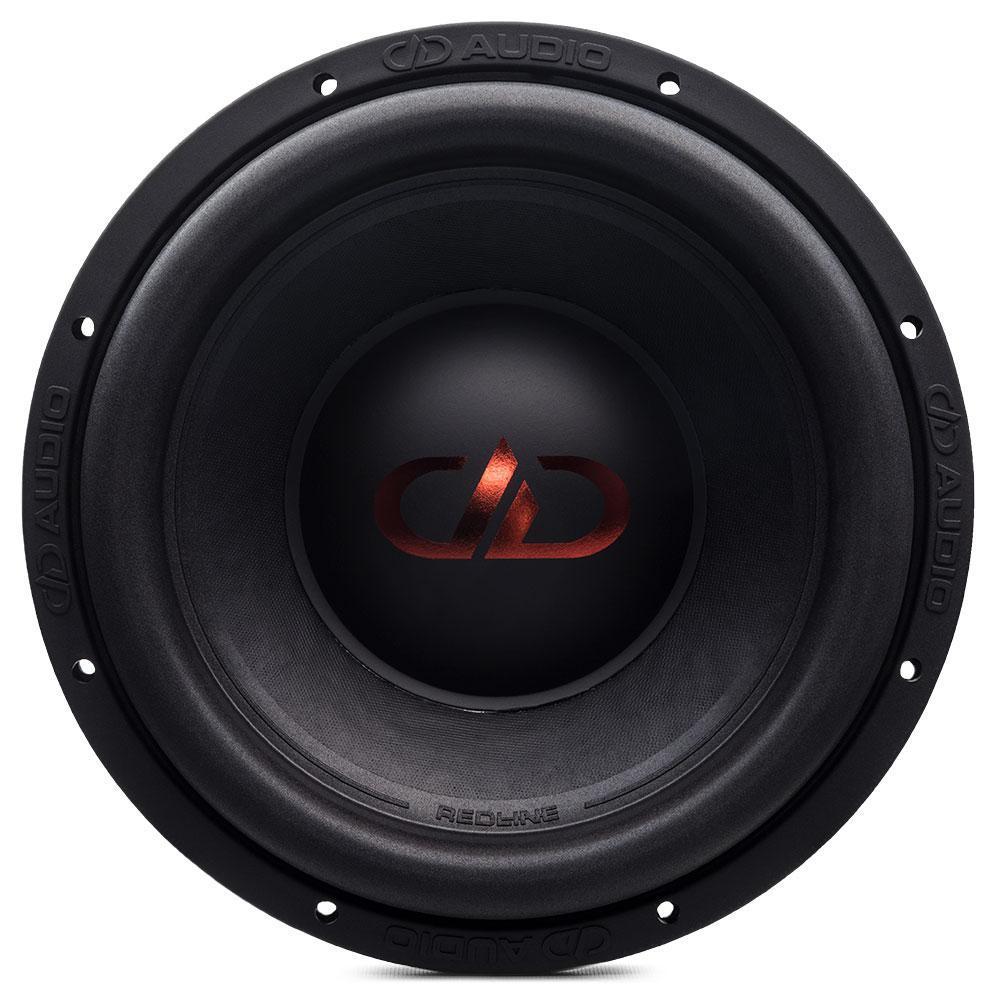

The 700 series is designed for serious performance. It features a DD cast basket supporting a triple stack magnet motor, heavy duty suspension, and a high strength cone coupled to a massive EROM surround, making them best suited for duty invented or multi-order enclosures.
700 Series Features:
EROM surround
High-temp, 3.0”, voice coil
Triple layer Deep bass, high excursion spider system
Unique glass fiber and natural pulp cone
Backplate coil gap venting
Extended pole piece
DD cast basket
MODEL 712D
Driver Size 12"
Watts RMS 600 - 1200
Peak Power 3600
VCD 3
Impedance D2 / D4
Piston Dia - in 10 1/4
Fs - Hz 28.26
Qms 4.344
Qes 0.4823
Qts 0.4341
Vas - liters 39.64
Xmech - mm 80
Xmax - mm 14
Frame OD - in 12 5/8
Frame OD w/Gasket - in 12 7/8
Mounting Diameter - in 11 3/8
Mounting Depth - in 8 9/16
Motor Diameter - in 7 3/4
Motor Depth - in 3 1/2
Woofer Displacement - cu ft 0.17
Sealed Enclosure - cu ft N/A
Ported Enclosure - cu ft 1.75 - 2.75
Shipping Weight - lbs 38
--
The 700 series is designed for serious performance. It features a DD cast basket supporting a triple stack magnet motor, heavy duty suspension, and a high strength cone coupled to a massive EROM surround, making them best suited for duty invented or multi-order enclosures.
700 Series Features:
EROM surround
High-temp, 3.0”, voice coil
Triple layer Deep bass, high excursion spider system
Unique glass fiber and natural pulp cone
Backplate coil gap venting
Extended pole piece
DD cast basket
MODEL 712D
Driver Size 12"
Watts RMS 600 - 1200
Peak Power 3600
VCD 3
Impedance D2 / D4
Piston Dia - in 10 1/4
Fs - Hz 28.26
Qms 4.344
Qes 0.4823
Qts 0.4341
Vas - liters 39.64
Xmech - mm 80
Xmax - mm 14
Frame OD - in 12 5/8
Frame OD w/Gasket - in 12 7/8
Mounting Diameter - in 11 3/8
Mounting Depth - in 8 9/16
Motor Diameter - in 7 3/4
Motor Depth - in 3 1/2
Woofer Displacement - cu ft 0.17
Sealed Enclosure - cu ft N/A
Ported Enclosure - cu ft 1.75 - 2.75
Shipping Weight - lbs 38
