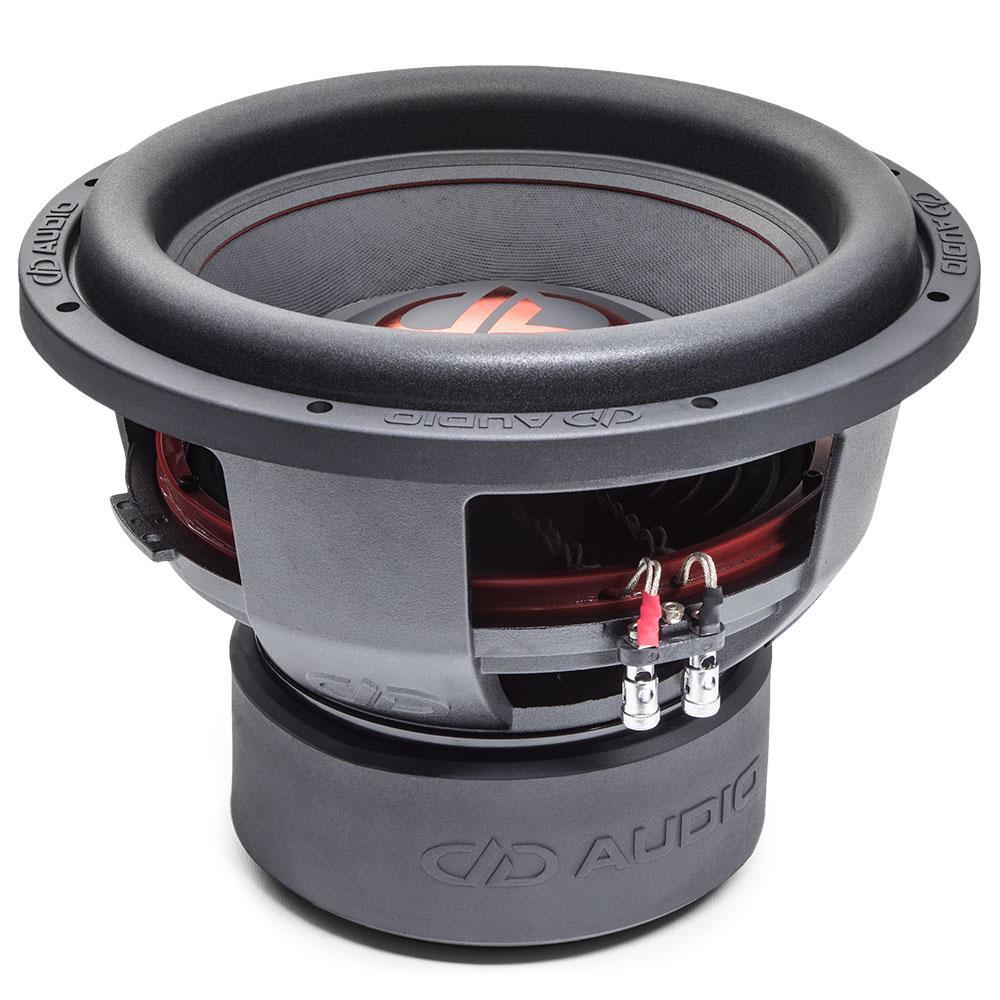

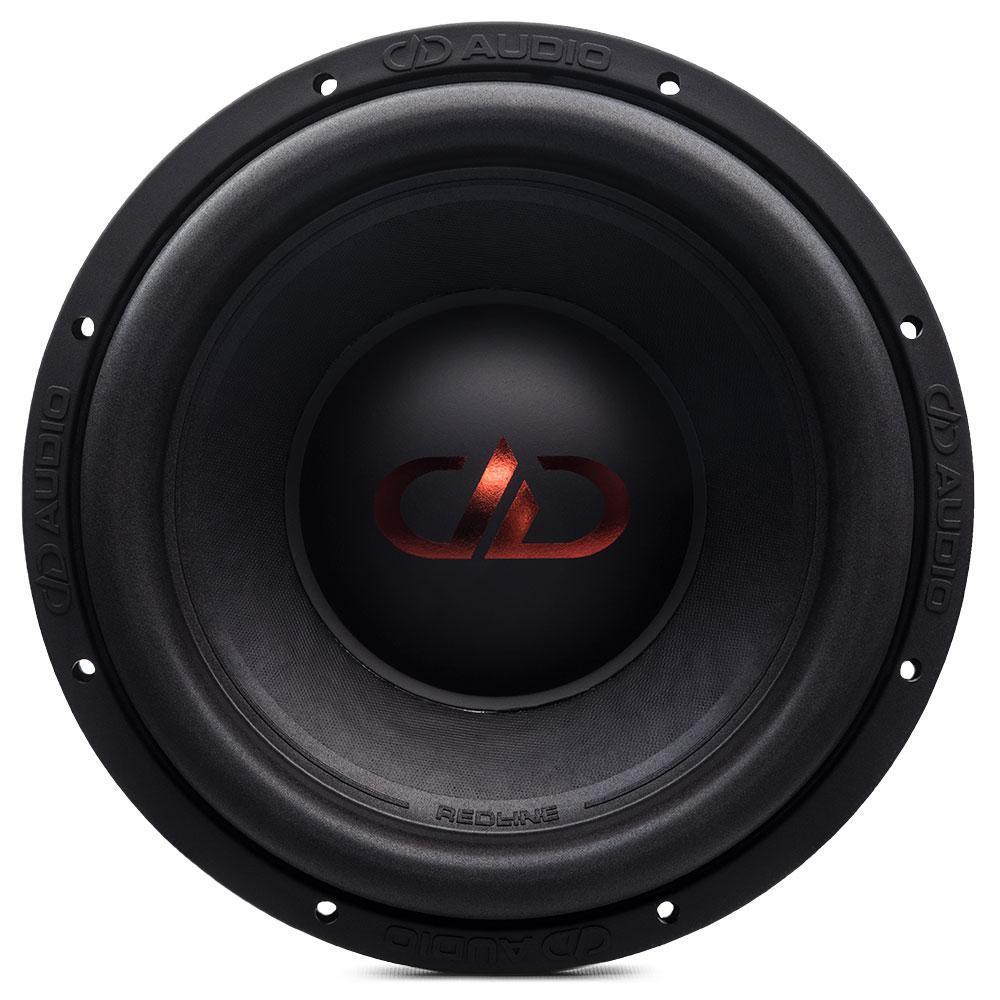

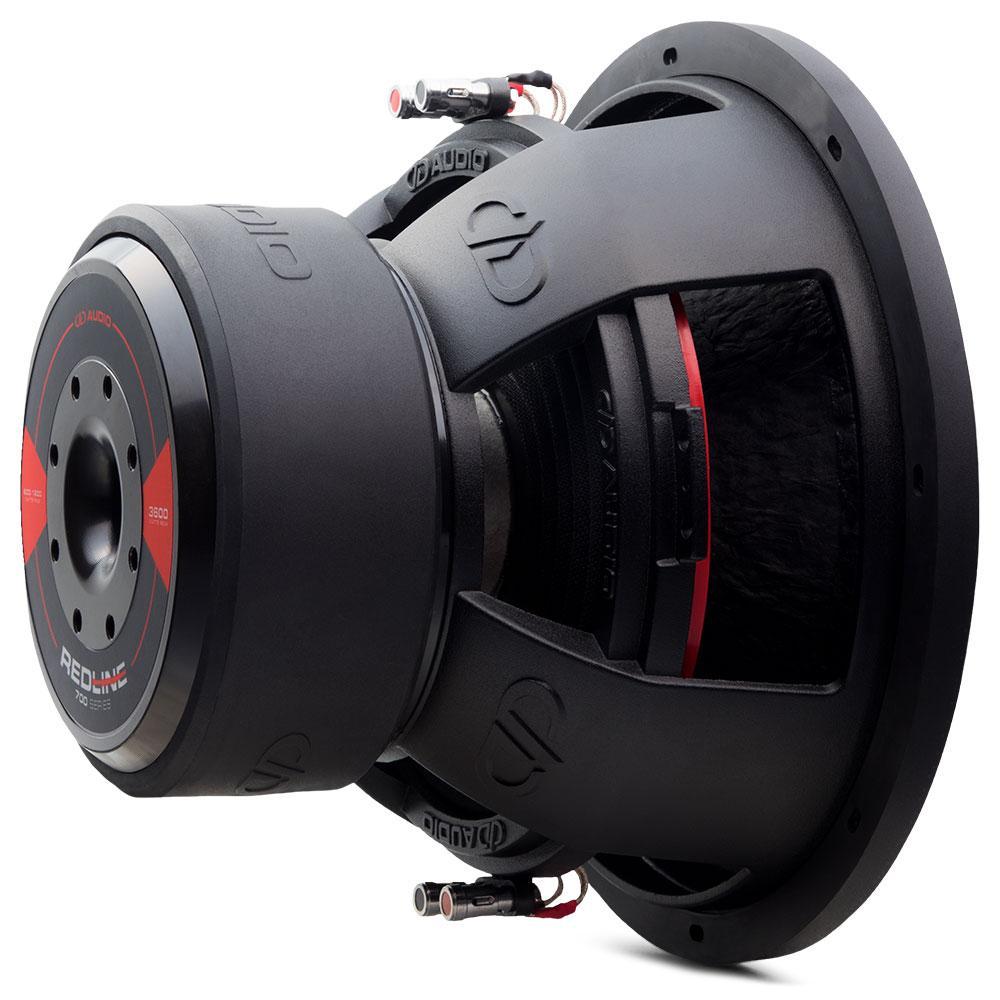

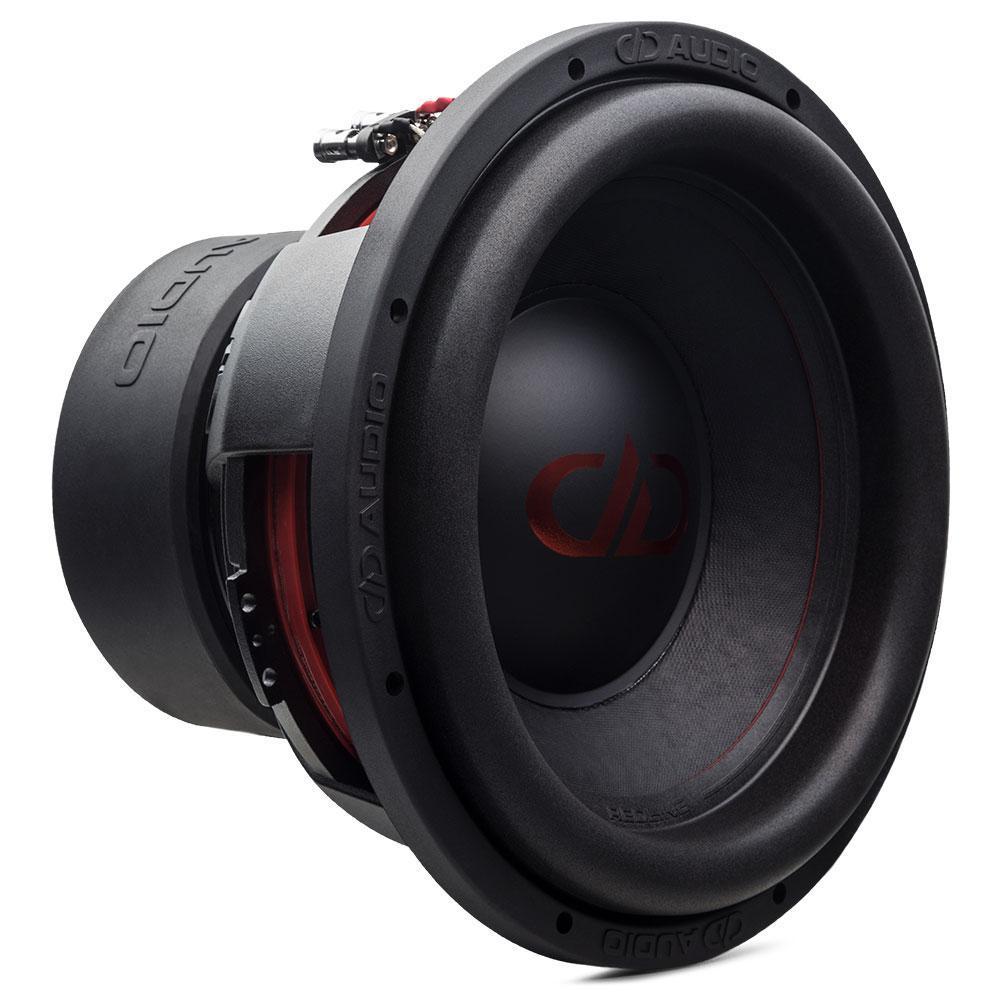

The 700 series is designed for serious performance. It features a DD cast basket supporting a triple stack magnet motor, heavy-duty suspension, and a high strength cone coupled to a massive EROM surround, making them best suited for duty invented or multi-order enclosures.
700 Series Features:
EROM surround
High-temp, 3.0”, voice coil
Triple-layer Deep bass, high excursion spider system
Unique glass fiber and natural pulp cone
Backplate coil gap venting
Extended pole piece
DD cast basket
MODEL 710D
Driver Size 10"
Watts RMS 600 - 1200
Peak Power 3600
VCD 3
Impedance D2 / D4
Piston Dia - in 8 1/2
Fs - Hz 28.53
Qms 3.786
Qes 0.350
Qts 0.321
Vas - liters 21.42
Xmech - mm 80
Xmax - mm 14
Frame OD - in 10 5/8
Frame OD w/Gasket - in 10 3/4
Mounting Diameter - in 9 5/16
Mounting Depth - in 7 1/8
Motor Diameter - in 7 3/4
Motor Depth - in 3 1/2
Woofer Displacement - cu ft 0.14
Sealed Enclosure - cu ft N/A
Ported Enclosure - cu ft 1.25 - 1.5
Shipping Weight - lbs 36
--
