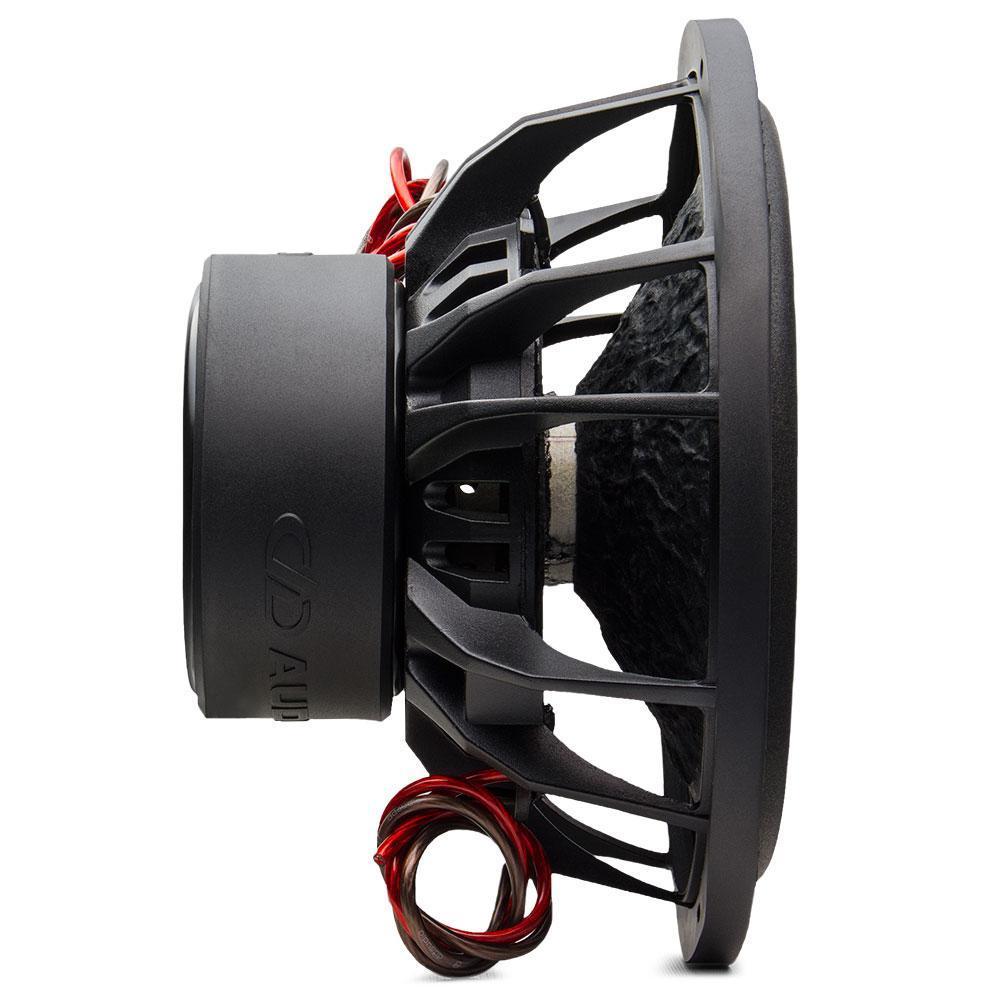

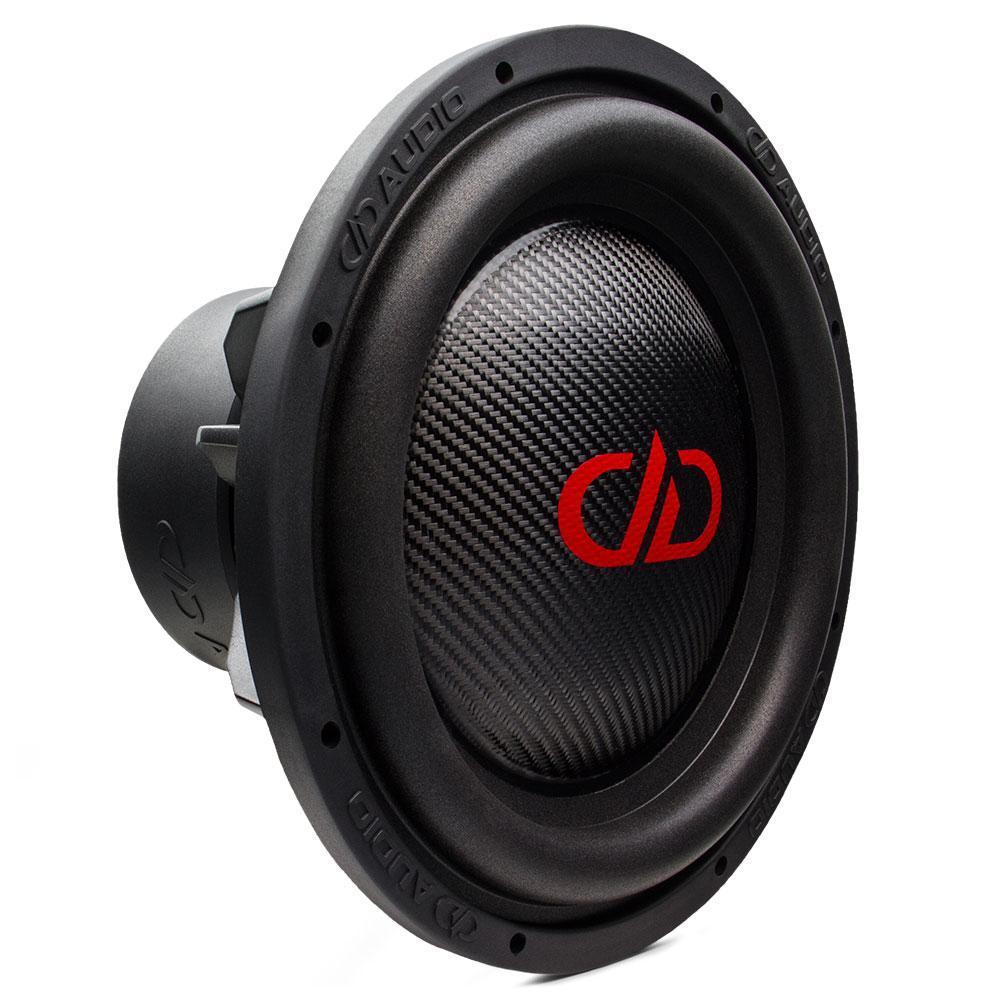

DD Audio 2510D ESP 2500 Series High-Performance 10" Subwoofer
Local Pickup Only. Contact us for details & exceptions.
--
The 2500 series is perfect for daily driving if you like to drive things hard. This is a smaller motor sub that really packs a punch by utilizing the same design elements, like long gap/long coil topology, that you’ll find on our legendary 9500 and 9900 subwoofers. Like its big brothers, the 2500 Series has Free Flow cooling for when things heat up, and our EROM surround for playing down low. The multi-layer suspension keeps things tight and accurate, allowing the 2500 Series subs to be as comfortable playing double pedal kick drums as they are playing below 40 Hz.
The 2500 Series comes standard with an oversized dry finish black composite dust cap, red logo, and treated pulp cone, but it can be optioned out with alternative composite dust caps, composite cones, powder coated frames, supercharging, and a multitude of logo options to give your sub a personalized look and/or added performance for a specific application.
| MODEL | 2510D |
| Driver Size | 10" |
| Watts RMS | 400 - 800 |
| Peak Power | 3200 |
| VCD | 2.5 |
| Impedance | D2 / D4 |
| Piston Dia - in | 8 1/2 |
| Fs - Hz | 33.65 |
| Qms | 7 |
| Qes | 0.8424 |
| Qts | 0.7519 |
| Vas - liters | 16.987 |
| Xmech - mm | 57 |
| Xmax - mm | 17 |
| Frame OD - in | 10 5/8 |
| Frame OD w/Gasket - in | 10 13/16 |
| Mounting Diameter - in | 9 3/8 |
| Mounting Depth - in | 6 1/2 |
| Motor Diameter - in | 6 3/8 |
| Motor Depth - in | 2 15/16 |
| Woofer Displacement - cu ft | 0.1 |
| Sealed Enclosure - cu ft | N/A |
| Ported Enclosure - cu ft | 1.25 - 1.5 |
| Shipping Weight - lbs | 22 |
