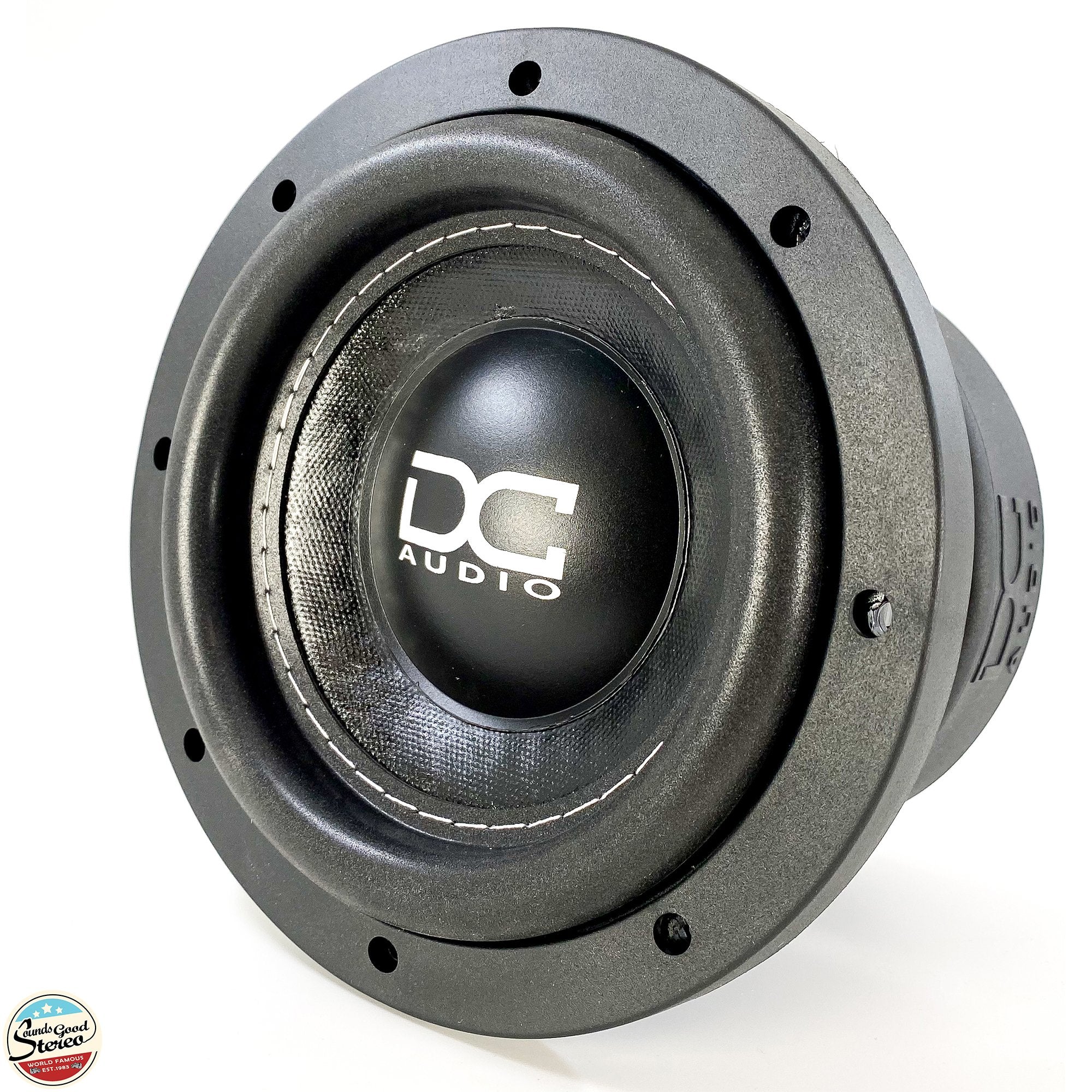

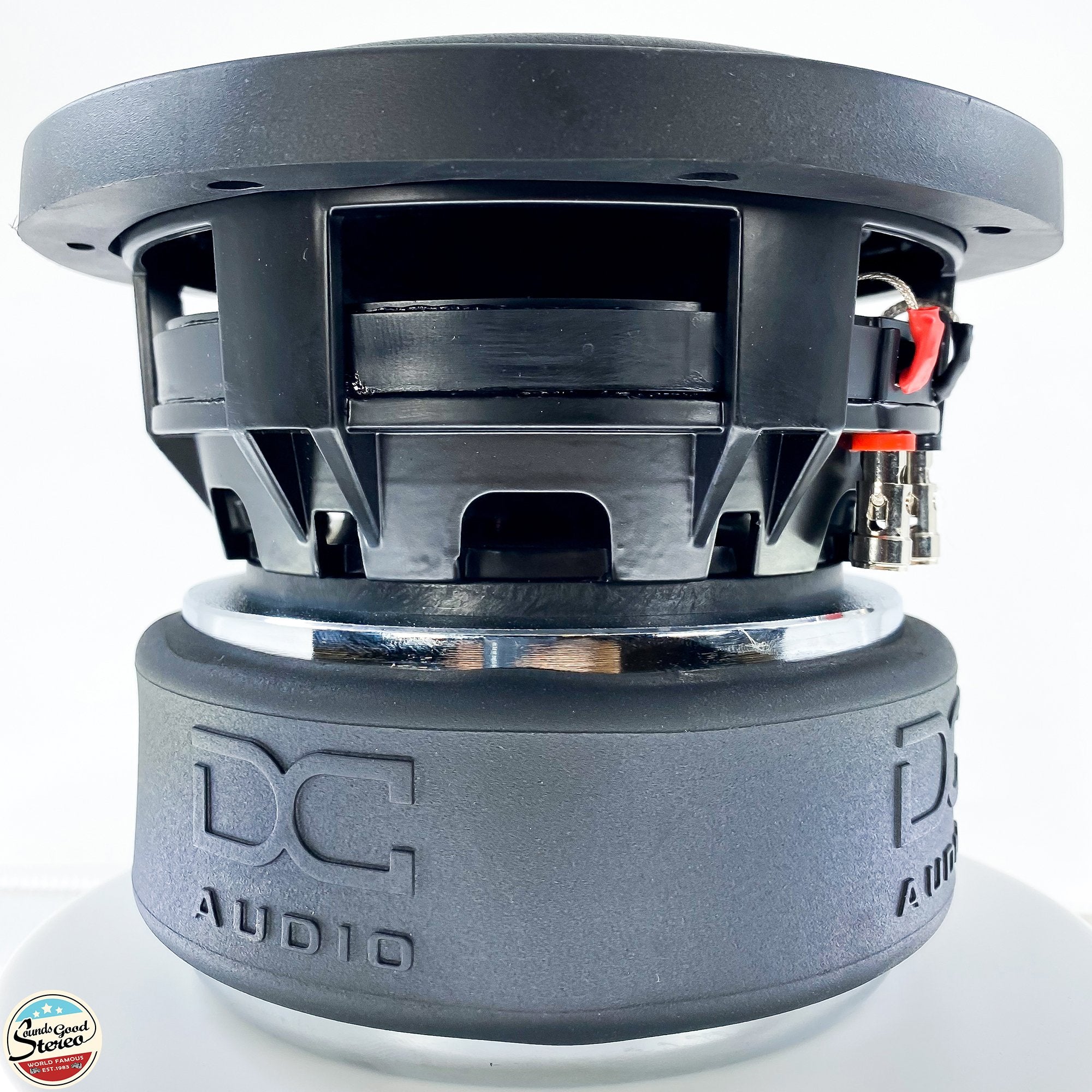

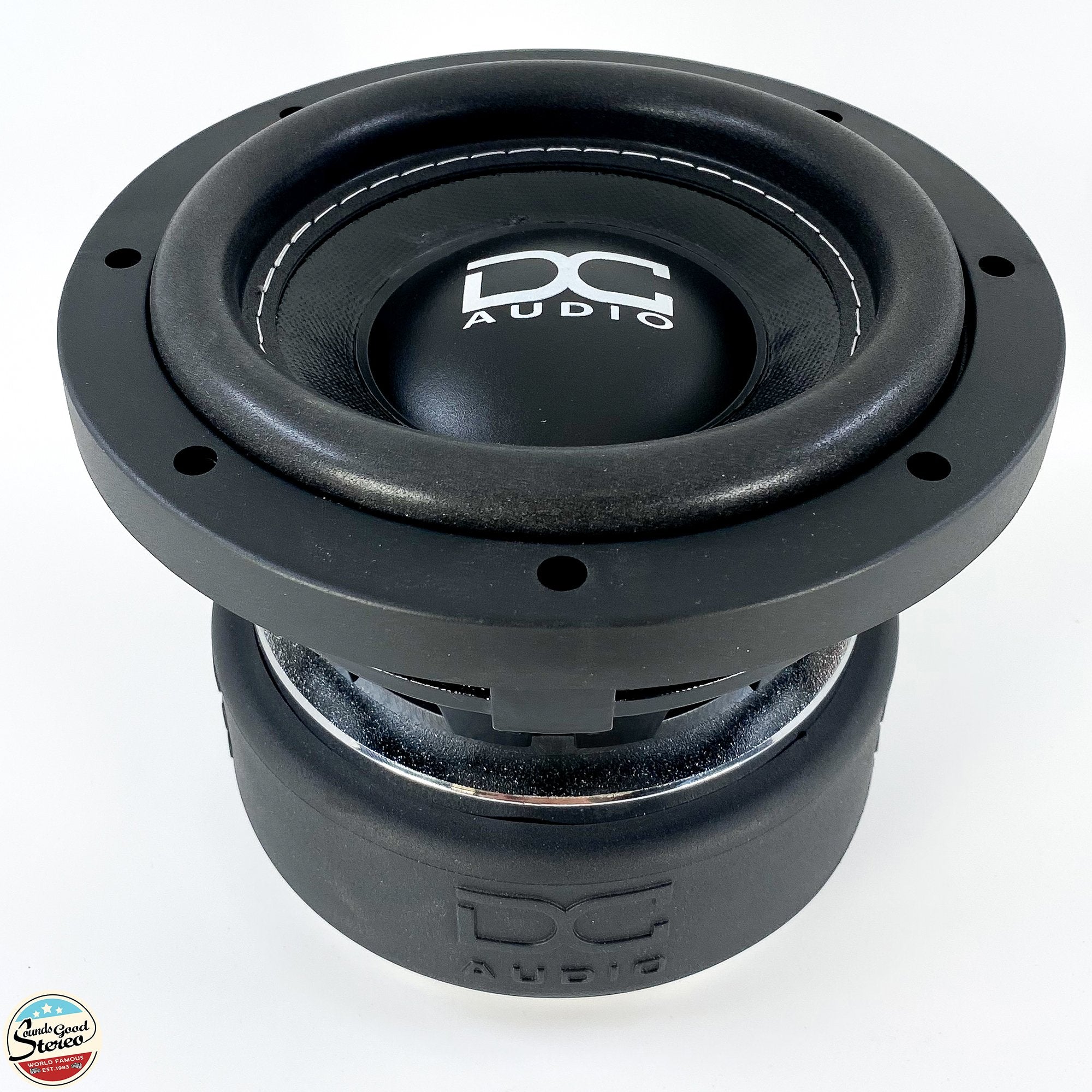

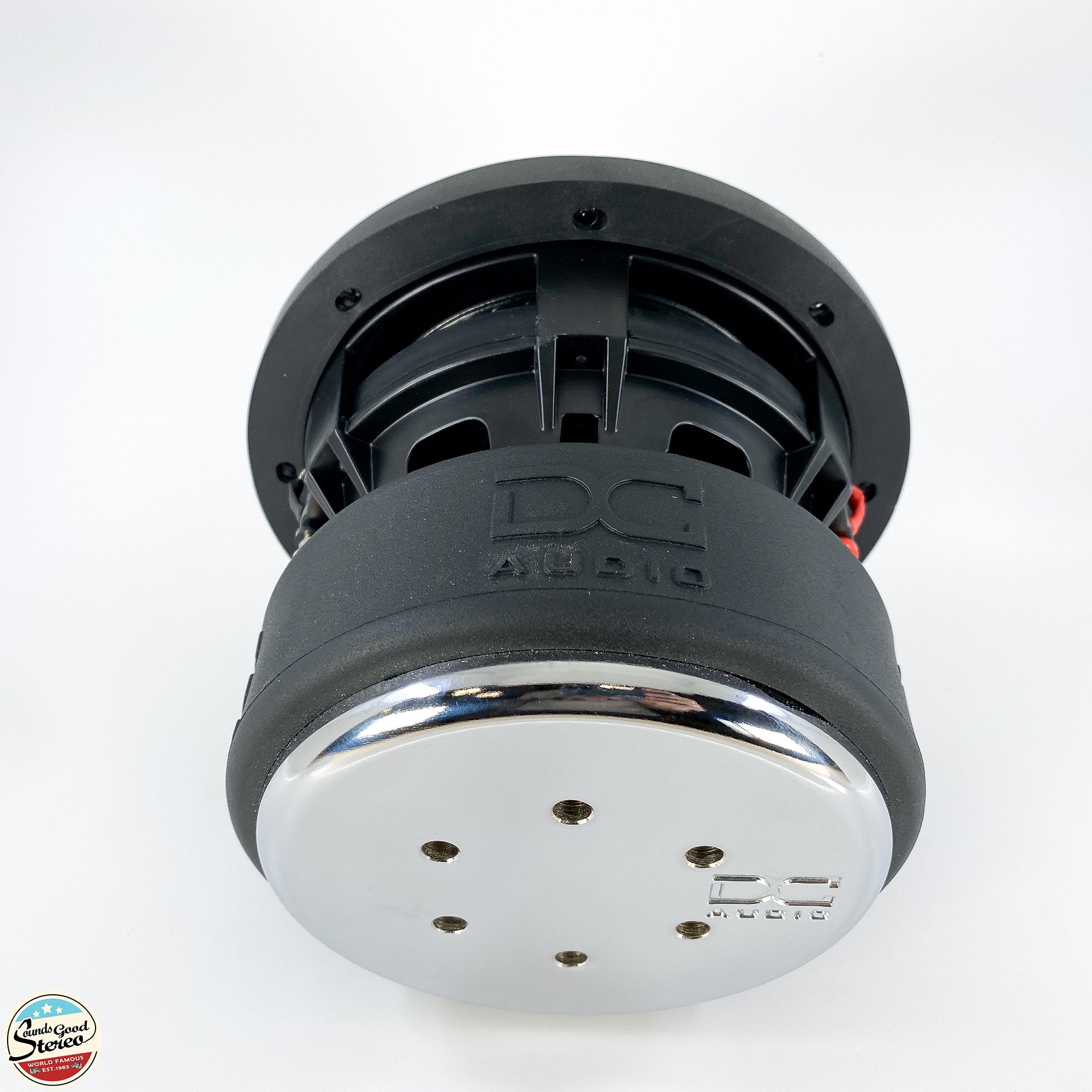

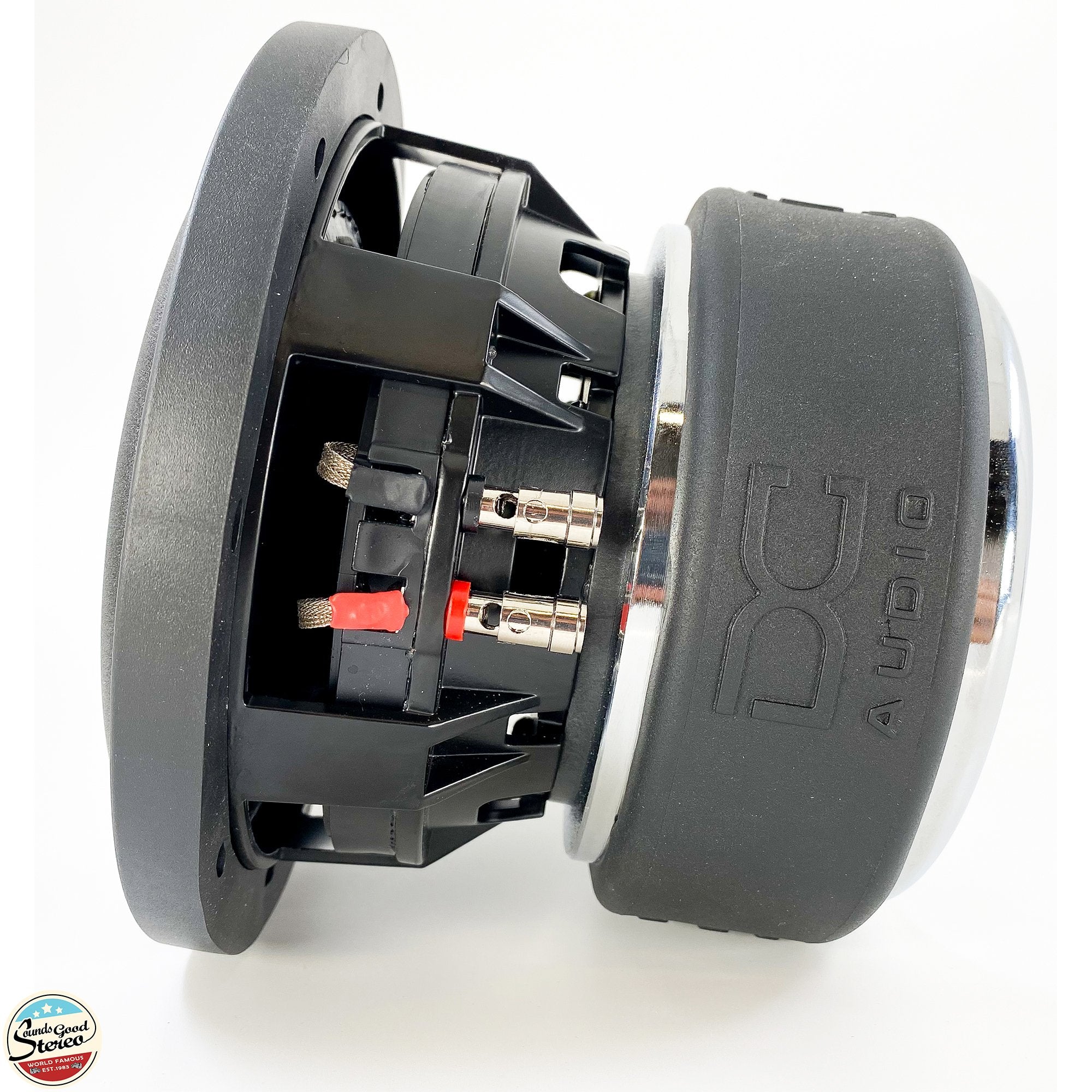

DC Audio M3 6.5-inch 300wrms High-Performance Subwoofer
As newer cars and trucks with less and less space are being designed and released, a demand for a smaller subwoofer with high output is needed to supply the demand for “Bass in a small space” application. The DC Audio 6.5 inch subwoofer is just that. Designed to work in extremely small box volumes and give you the maximum amount of output. These little monsters have you covered on the low-frequency spectrum.
Key Features
• Extremely rigid non-pressed paper cone assembly
• High Roll Stitched Multilayered reinforced polymer foam surround
• Rigid propylene dust cover with White DC logo
• Laminated Nomex Spiders
• Sewn flat heavy-duty tinsel lead wire
• Die-Cast aluminum black frame
• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket and custom tooled motor boot.
• DVC 2.0” Copper voice coil.
| Sub Size | 6.5" |
| Mounting Depth | 5" |
| Mounting Hole Diameter | 5.82" |
| Outside Driver Diameter | 7.16" |
| Weight | 80oz |
| Magnet Material | ferrite |
| VC Diameter | 2"Copper |
| Displacement | .05³ ft |
| Power Handling RMS/Peak | 300/600 |
| Impedance (Ohm) | D2/D4 |
| Sd | 14.314cm² |
| Vas | 3.464L |
| Cms | 119 um/n |
| Mms | 92.57 g |
| Fs | 47.9Hz |
| BL | 14.4 N/A |
| Re | 4 Ohm |
| Le | |
| Qms | 3.126 |
| Qes | 0.537 |
| Qts | 0.456 |
| Xmax | 16mm |
| Ref SPL @ 1 watt | 80.4 |
| Suggested Sealed | .15 |
| Suggested Ported | .3³ ft |
